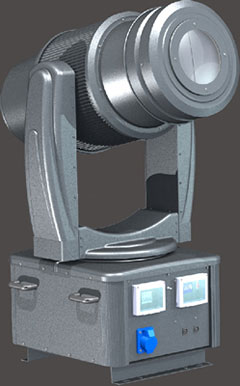

Mode type: GBSDP/DMX-XBO3000/4000/5000/7000W-A/B

Power sourse: 3000/4000/5000W:AC220V±10%/50Hz(1P+N+E)
7000WAC380V±10%-50Hz(3P+N+E)

Bulb: Sphere xenon lamp XQ-3000/4000/5000/7000W

Lihgt beam: ≤46light beam

Protection mark: IP44

Lihgt beam angle: 0~20⁰

Electronic dimming: 10~100%

Electronic stroboflash: ~15f/s

Lights rotating angle: ±360⁰ DMX512 channel contrll is return steering

Lights body rotation angle: X-axle 350⁰, Y-axle 240⁰ (Two axis all takes precision erroe correction)

Transmission way: Precision worm compact transmission

Light beam focus: Y,X,Z fine-tuning

Type B: Adopt unque built-in CMY three colors polygon glass tube way discoloration Non-polar(Patent number):ZL200530010300x

Lightbrake: DMX512 Channel control mechanical light brake

Control mode: DMX512 Channel control; Master-slave machine synchronous control;(Built since go demo)

Channel number Type A: 7CH; Type B: 12CH(Details see attached list)

Display:Blue backlit LCD,a key shuttle options meun

Protect way: Adopts automatic monitoring protextion

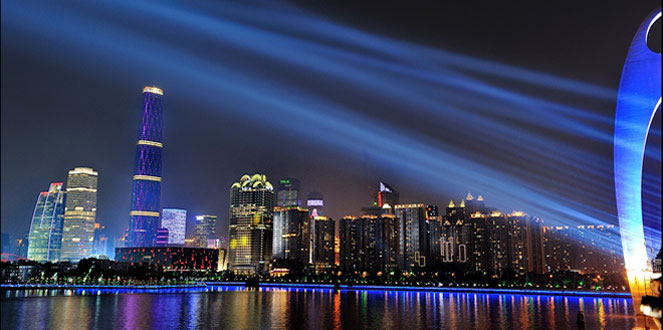

Applications: Square, park, high-rise building, city high ground, rivers coast large scene landscape is the indispensable light for city night scene.
