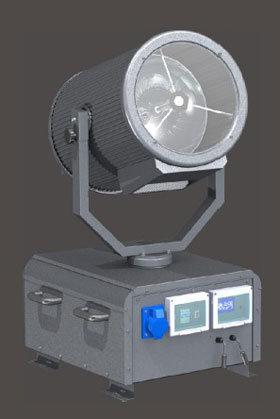

Model type: GDP/DMX-XBO(2~12)X3000/4000/5000/7000W

Power source: AC220V ±5%/50Hz(1P+N+E)); AC380V ±5%/50Hz(3P+N+E)

Light source: XBO-3000/4000/5000/7000w;(sphere DC xenin lights)

Light beam angle:0~10⁰ adjustable

Rotating angle:X-shaft350⁰,Built-in Angle and rotation diection arbitrry settings,Y-shaft 60⁰ Manual adjustment

Reflector: Φ400/356/325/300mm,glass

Transmission way: Stepping motor through the worm gear deceleration transmission

Communication signals: DMX512

Channel number:3/5 Ch(Details see attached list)

Protection mark: IP44

Control mode: DMX controller control;Master-slave machine control(built-in demo)

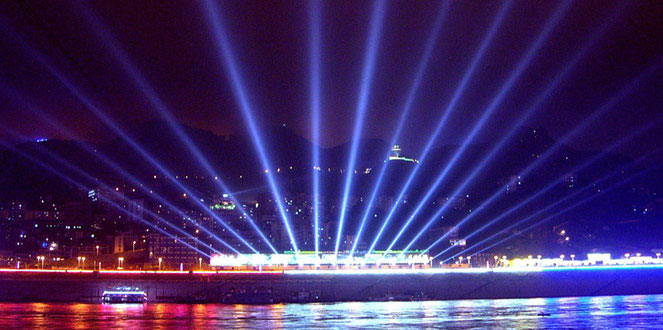

Applications: Squares,parks,high-rise buildings,high place of cities,broad sky sceneries along rivers
