Model type: GDP/DMX-XBO(2~12)X3000/4000/5000/7000/100000W

Power source: AC380V ±5%/50Hz(3P+N+E)

Light source: XBO-3000/4000/5000/7000/10000w;(sphere DC xenin lights)

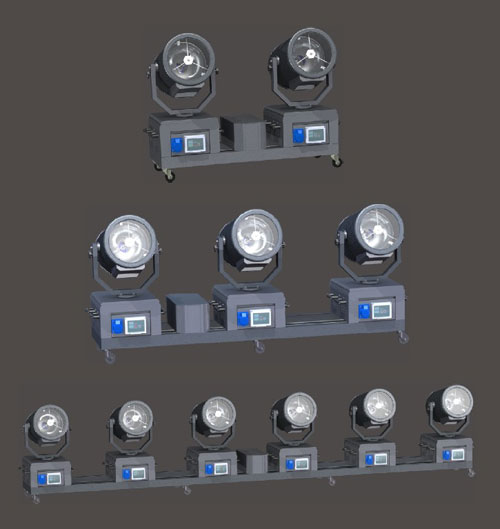

Light beam: 2~12 light beam

Light beam color: White,rose,yellow,green,blue

Color filter: 375mm(Rose,yellow,green,blue as selective component)

Reflector: Φ400/325/350/250mm,glass

Rotating angle:X-110⁰ automatic,Y-60⁰ manual

Light beam angle:0~180⁰

Light beam focus: Y,X,Z adjustable

Transmission way: Stepping motor through the worm gear deceleration and connecting rod transmission

Control mode: DMX controller control;Master-slave machine control(built-in demo)

Channel number: 5Ch(Details see attached list)

Protection mark: IP44

Lamps structure:Lamp holder and the electrcal box adopts combination is converinet transportation

Function: Beam X axis rotation of synchronous scanning, beam color can be manual replacement,Lamps can move

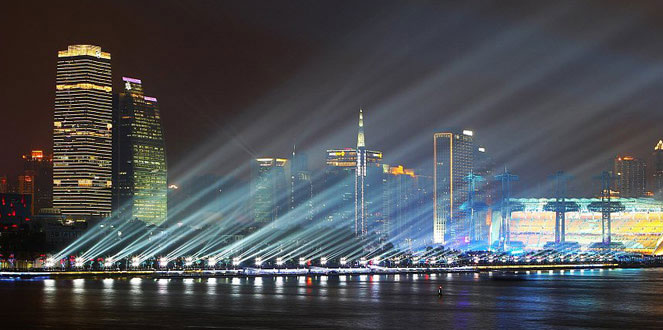

Applications: Squares,parks,high-rise buildings,high place of cities,broad sky sceneries along rivers
