Model type: GDP/±3600-XBO(3~6)x300⁰/4000/5000/7000W

Power supply: AC380V±5%/50Hz(3p+N+E)

Bulb: XBO-3000/4000/5000/7000W(SPHERE XENON LAMP)

Light beam quantity: 3/4/5/6 light beam

Rotation angle: X axis ±360⁰ positive and negative autorotate, Y axis 60⁰ manual adjust

Light beam color: White,rose,yellow,green,blue

Color filter: Rose,yellow,green,blue as selective component

Reflector: Φ400/356/325/300mm glass

Bean angle:0~10⁰ adjustable

Bulb focus:X,Y,Z can slightly adjustable

Move way: stepping motor through the worm gear deceleration transmission

Control mode: DMX 512 controller control(Built-in demo procedure)

Channel quantity: 5Ch(see the attached list)

Protection mark: IP44

Light structure: Lamp holder in combined way, convenient in installation and transportation

Function: light beam Xaxis ±360⁰ circle rotate,Y axis manual adjust fixed elevation,Light color can be arbitrary combination

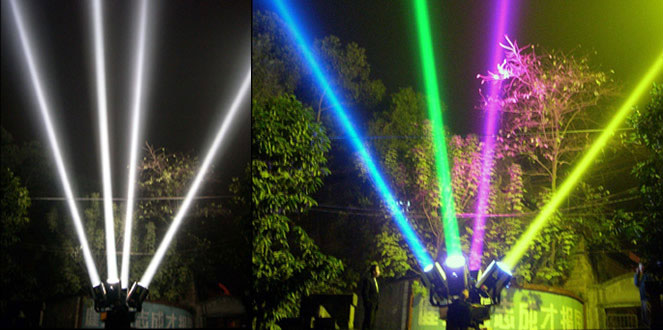

Applications: Squares,parks,high buildings,high places,Rivers coast
